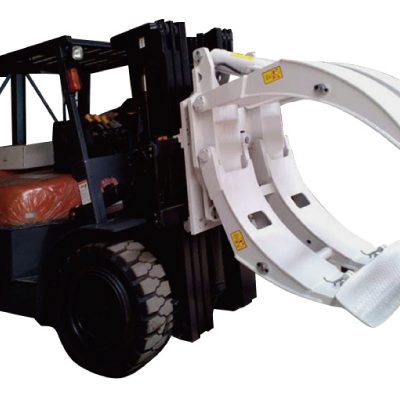

Class 2 Forklift Attachment Rotating Paper Roll Clamp - Fujian Huamai Machinery Co., Ltd.

Ang paper roll clamp nga adunay kaarang sa episyente, luwas, wala’y pagsira sa pagdumala ug pagtapot sa papel nga rolyo, ug pag-clamping roll nga nagpadayon nga 360 degree rotation, kaylap nga gigamit sa papel, karton, packing, pagpi-print, pantalan ug uban pang mga industriya.

Mga detalye

Kapasidad (kg)	Katalogo	Pag-mount sa Klase	Range Range (mm)	Tag-as nga Laba sa Arm (mm)	Mubo nga Laba sa Arm (mm)	Kalag sa bukton (mm)	Vertical Center sa Gravity (mm)	Ang Horisontal Center sa Gravity (mm)	Epektibo nga Pagkagahi (mm)	Timbang (kg)
1300	SLZ-A001	2	330-1150	685	515	45	330	216	138	345
1200	SLZ-A002	2	410-1300	790	580	45	330	222	138	345
2000	SLZ-A / B004	2/3	250-1300	824	570	45	345	295/330	210/250	730/748
2000	SLZ-A / B005	2/3	630-1300	824	570	45	345	290/325	210/250	720/738
2000	SLZ-A / B006	2/3	350-1600	956	774	90	345	310/320	210/250	838/848
2000	SLZ-A / B007	2/3	630-1600	956	774	90	345	308/318	210/250	826/834
1700	SLZ-B008	3	680-1830	1130	930	112	345	458	210/250	950
1700	SLZ-B009	3	380-1830	1130	930	112	345	460	210/250	965
2700	SLZ-B / C010	3/4	520-1300	850	590	85	445	270/290	210/250	820/840
2700	SLZ-B / C011	3/4	250-1300	850	590	85	445	270/290	210/250	835/855
2700	SLZ-B / C012	3/4	560-1520	970	690	70	445	305/322	210/250	880/900
2700	SLZ-B / C013	3/4	255-1520	970	690	70	445	305/322	210/250	898/918

Mubo nga sulat

1) Palihug makuha ang tinuud nga komprehensibo nga kapasidad sa pagdala sa forklift / pagdugtong gikan sa pabrika sa forklift

2) Suno sa mga kinahanglan sang mga nagagamit, maghatag sang mga pagbahin agud ipahiuyon sa lainlain nga mga kinahanglanon sa paghupot sa rol

3) Nagkinahanglan usa ka forklift aron madugangan ang dugang nga 1 nga set sa lana.

Mga Video

Dali nga mga Detalye

Dapit sa Sinugdanan: Fujian, China (Mainland)
Ngalan sa Brand: HUAMAI
Paggamit: Glass Clamp
Materyal: puthaw
Kahulugan: F Clamp
Sulud o Dili Mapugngan: Sulud
Ngalan sa produkto: Klase 2 forklift attachment rotating paper roll clamp
Pag-load sa Kapasidad: 1300kg
Range Range: 330-1150mm
Klase sa Pag-mount: II
Gitas-on nga Laso sa Arm: 685mm
Mubo nga Lengan sa Laso: 515mm
Kalig-on sa Arm: 45mm
Vertical Center sa Gravity: 330mm
Ang Horisontal Center sa Gravity: 216mm
Timbang: 345kg

A Class 2 forklift attachment rotating paper roll clamp is a specialized attachment designed for handling large rolls of paper. The clamp attaches to a Class 2 forklift, which is a forklift with a capacity of up to 4,000 pounds.

The rotating paper roll clamp consists of two arms that attach to the forks of the forklift and a rotating mechanism in the center. The clamp is designed to securely hold large rolls of paper in place, allowing the operator to easily pick up, move, and place the rolls. The rotating mechanism allows the operator to rotate the rolls to a desired position, making it easier to handle the rolls and reducing the risk of injury and damage to the load and the environment.

One of the main advantages of the Class 2 forklift attachment rotating paper roll clamp is its versatility. It can handle a wide range of large rolls of paper, making it a convenient accessory for a variety of material handling tasks. The rotating mechanism also allows the operator to easily place the rolls in the desired position, reducing the risk of injury to the operator and other workers.

Another advantage of the Class 2 forklift attachment rotating paper roll clamp is its efficiency. The clamp makes it easier to handle and transport the rolls, reducing the time and effort required to complete the task. This makes it more cost-effective and time-efficient, saving companies time and money in the long run.

In conclusion, the Class 2 forklift attachment rotating paper roll clamp is a useful tool for handling and transporting large rolls of paper. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.
